| Voltage | 3.6V | Operable voltage | 2.5-5V |
| Locked-rotor current | 470mA | Operating Current | ≤30mA |
| On (Off) Time | ≤13s(3500:1) | Output Torque | ≥2.5N.m(3500:1) |
| On (Off) Time | ≤25s(6200:1) | Output Torque | ≥4N.m(6200:1) |
| Reduction ratio | 3500:1 | Waterproof rating | IP67 |
| Reduction ratio | 6200:1 | Model | KY-56 |
The fully open and fully closed positions can be customized according to customer requirements.
I: Blue (open valve)
II: White (COM)
III: Yellow (close valve)
IV: Red (positive)
V: Black (negative)
| Wire color | Label | Description |
| Red | S | Signal Line |
| Black | V | Power Line |
| Blue | GND | Ground |

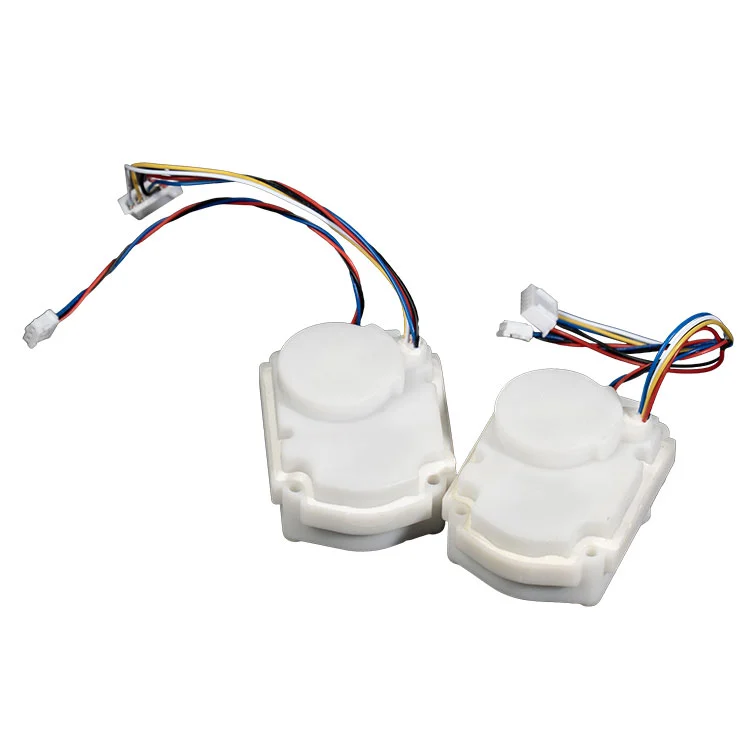

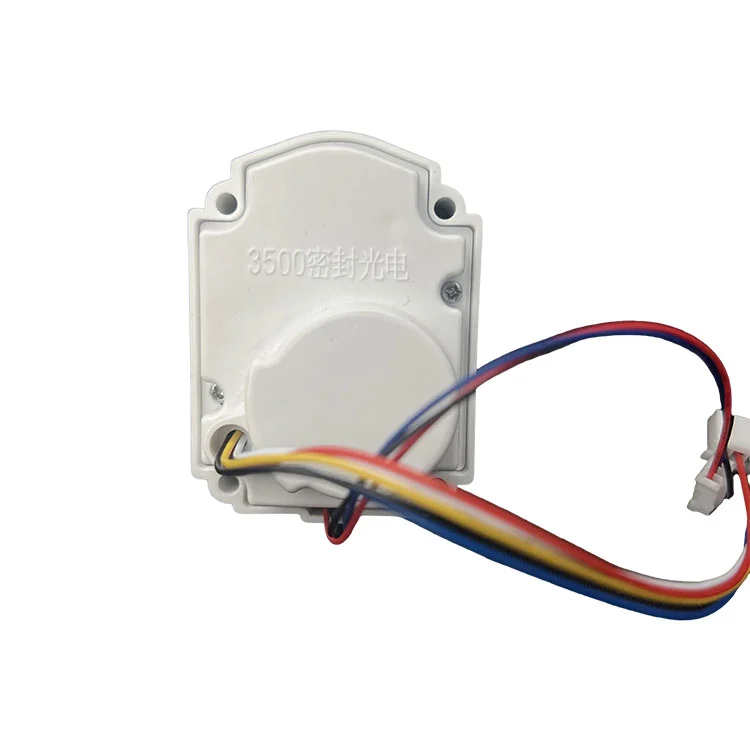

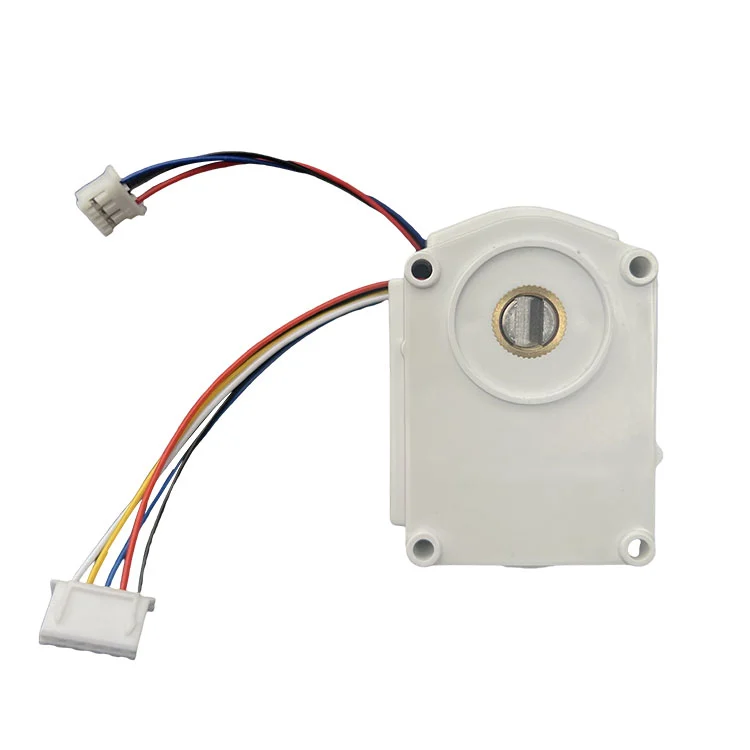

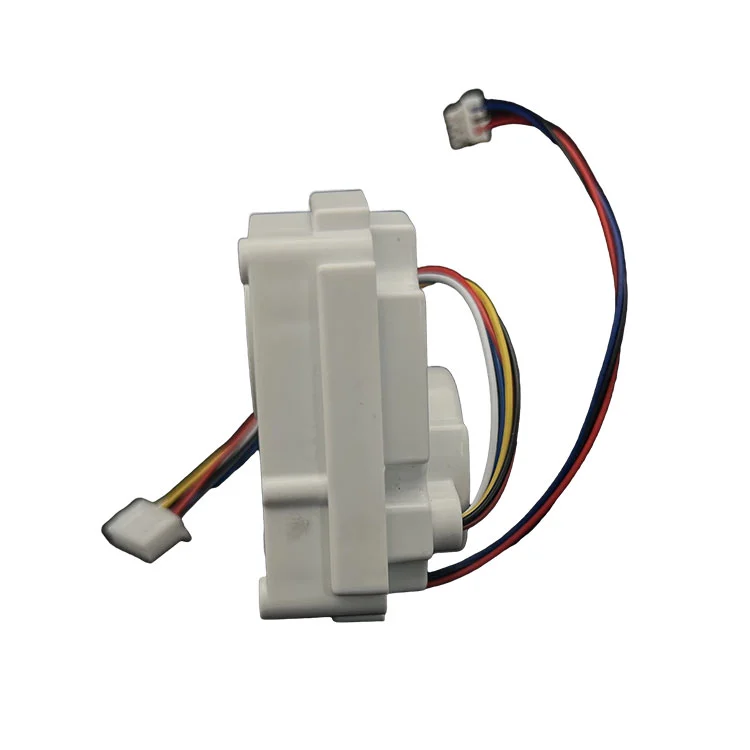

Photoelectric Angle Control Actuator uses precision photoelectric components to capture and identify the rotation angle of the valve, achieving an unprecedented 200-gear angle adjustment capability.
We can upgrade valve control from the traditional "full open/full close" binary operation to refined management, just like adjusting the brightness of a dimmable desk lamp. Whether it requires a tiny flow for irrigation or chemical dosing, or precise control of pipeline pressure, it can provide the exact opening degree needed. This provides a strong terminal execution guarantee for district metering area (DMA), refined pressure management and water-saving control in smart water utilities.
Q: What is the advantage of the 200-gear angle adjustment capability of the KY-56 photoelectric angle control actuator?
A: The 200-gear precise angle adjustment upgrades the traditional "full open/full close" valve control to refined management. It can provide the exact valve opening degree according to actual needs, such as tiny flow for irrigation or chemical dosing, and precise pipeline pressure control, which is ideal for DMA, refined pressure management and water-saving control in smart water utilities.
Q: How to choose the appropriate reduction ratio (3500:1 or 6200:1) for different scenarios?
A: Choose according to the required torque and on/off time: 3500:1 is suitable for scenarios that need faster operation (on/off time ≤13s) and moderate torque (≥2.5N.m); 6200:1 is suitable for scenarios that require larger torque (≥4N.m), such as larger pipelines, with on/off time ≤25s.
Q: Can the fully open and fully closed positions of the KY-56 actuator be adjusted?
A: Yes. The fully open and fully closed positions of the actuator can be customized according to customer requirements, which can better adapt to different smart water system configurations and pipeline installation scenarios.
Q: What is the applicable environment of the actuator with IP67 waterproof rating?
A: The IP67 waterproof rating means the actuator can prevent dust intrusion and be immersed in water for a short time, making it suitable for various harsh outdoor or wet environments, such as underground pipeline wells, outdoor water supply equipment, and areas prone to rain, ensuring stable operation in complex conditions.
