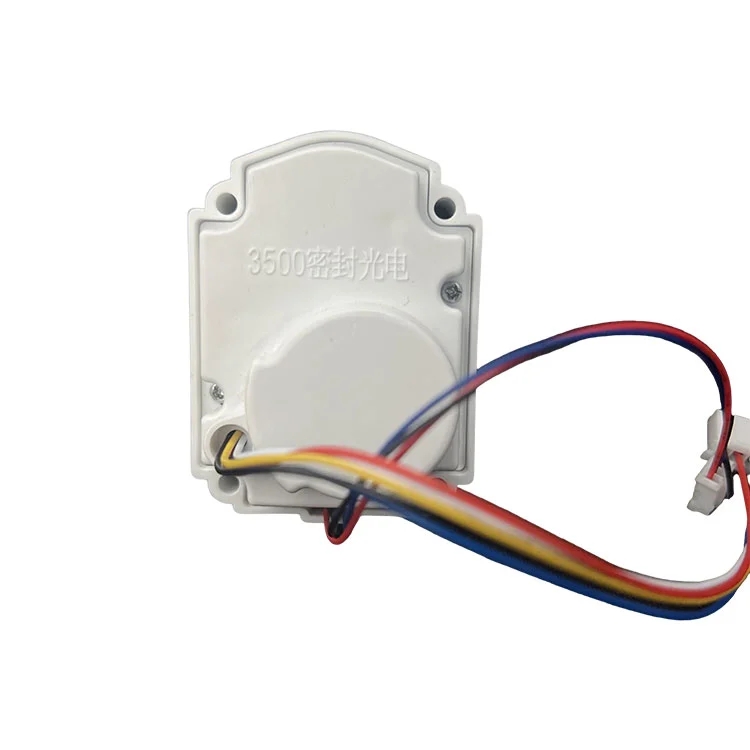

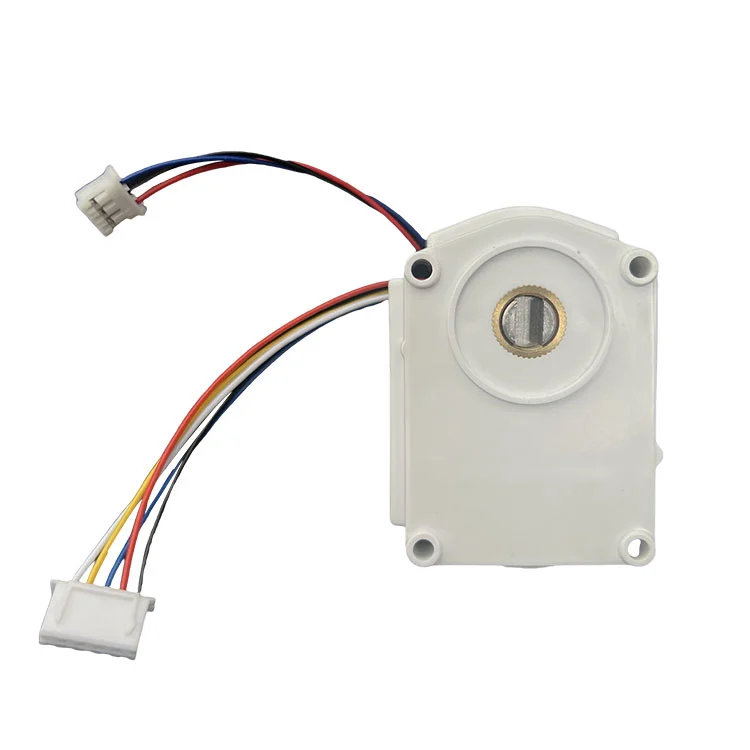

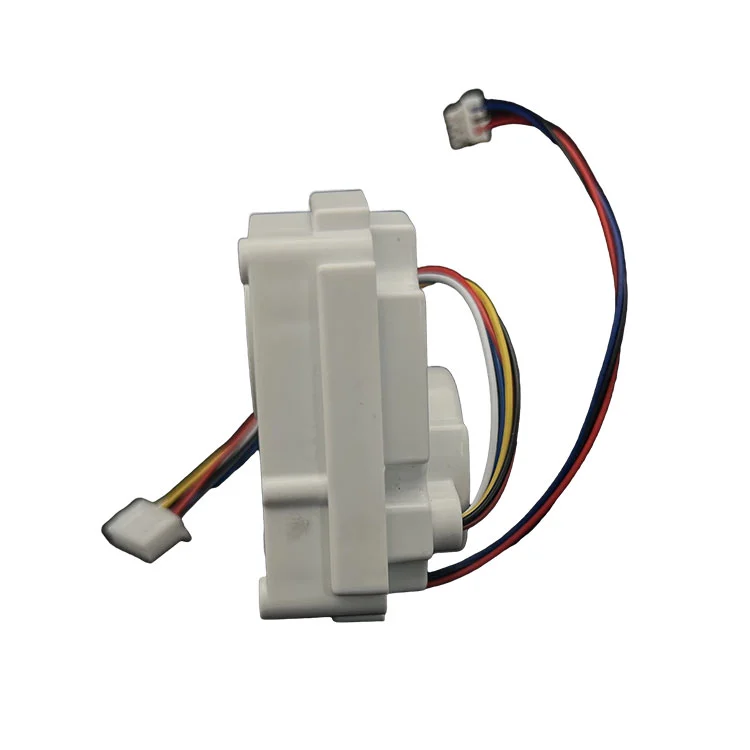

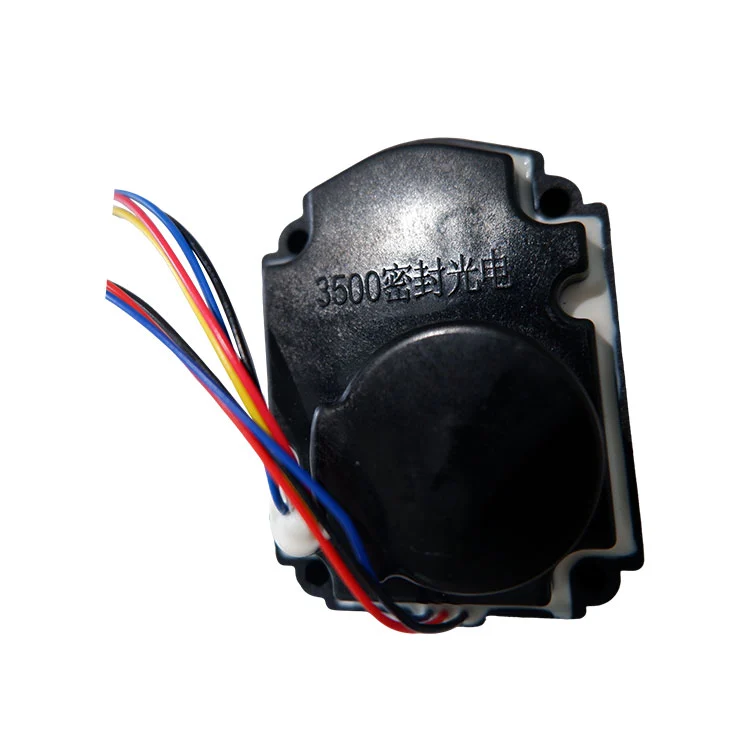

Smart water meter angle control actuator features precise stepless angle adjustment, real-time position feedback via a potentiometer, automatic positioning under external force or water pressure, adjustable forward or reverse rotation and speed, as well as limit protection.
Smart water meter angle control actuator also offers high positioning accuracy, stable torque, long service life, compact size, easy installation and low power consumption with support for DC 3.6V power supplies. What’s more, smart water meter angle control actuator enables over 100 levels of valve adjustment for more accurate flow control, and is widely used in water purification, HVAC, ventilation systems, water treatment, drinking fountains and so on.
| 1. Rated operating voltage | 3.6V |
| 2. Operating Voltage | 2.5-5V |
| 3. Empty ampere @ rated voltage | ≤30mA |
| 4. Stalling ampere @ rated voltage | about 470mA |
| 5. Torque @ rated voltage | ≥2.5NM(35001), ≥4NM(6200:1) |
| 6. Time for quarter turn @ rated voltage | ≤13s(35001), ≤25s(6200:1) |
| 7. Reduction rate | 355001, 6200:1(DN15-32) |
| 8. Protection | IP67 |
| 9. WSD |
5wires ◎.Blue: open or close valve ◎.White: COM ◎.Yellow: close or open valve ◎.Red: positive+ ◎.Black: negative- |
| 10. WSD |

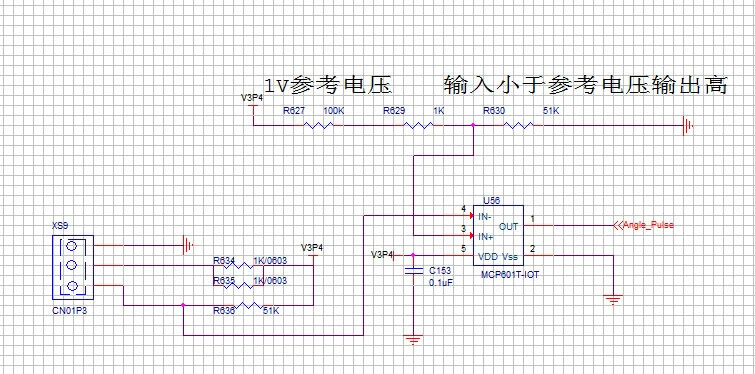

3wires ◎.Red: S ◎.Black: V ◎.Blue: GND |
What advantages does the "over 100 levels of valve adjustment" bring to smart water meters?
A: Compared with traditional on/off valves (only 2 levels: fully open/closed), 100+ level adjustment allows precise control of water flow (e.g., reducing flow for low-consumption scenarios like dripping, or adjusting flow based on user demand). This improves user experience and supports smart water management functions like leak prevention.
What’s the difference between the 5-wire and 3-wire configurations? How to choose?
The 5-wire configuration offers independent open/close control + common terminal, with clearer signal direction and higher control stability (suitable for high-precision smart water meters). The 3-wire configuration (S/V/GND) is simpler, with integrated signal and power lines (ideal for space-limited or cost-sensitive scenarios). Our team can recommend the right type based on your meter’s control system.
