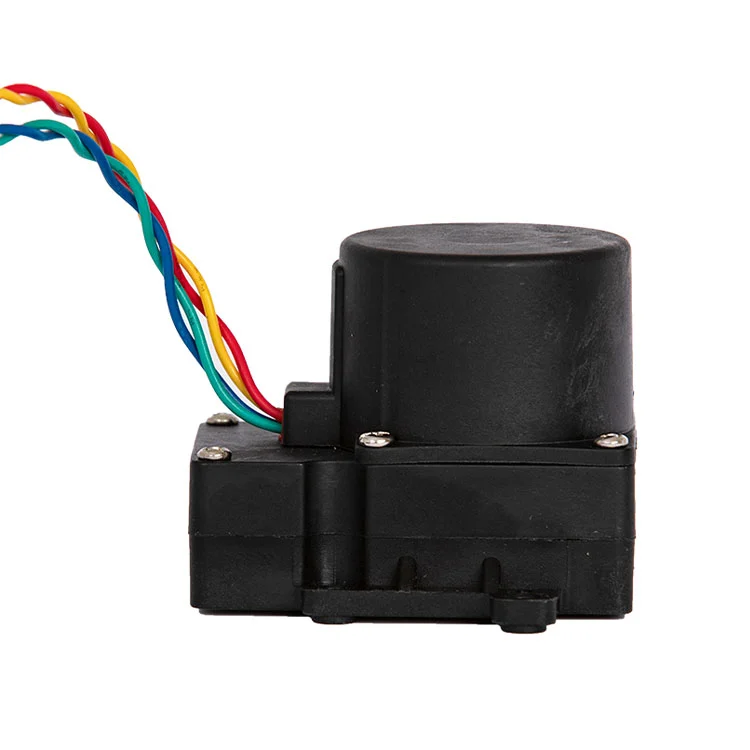

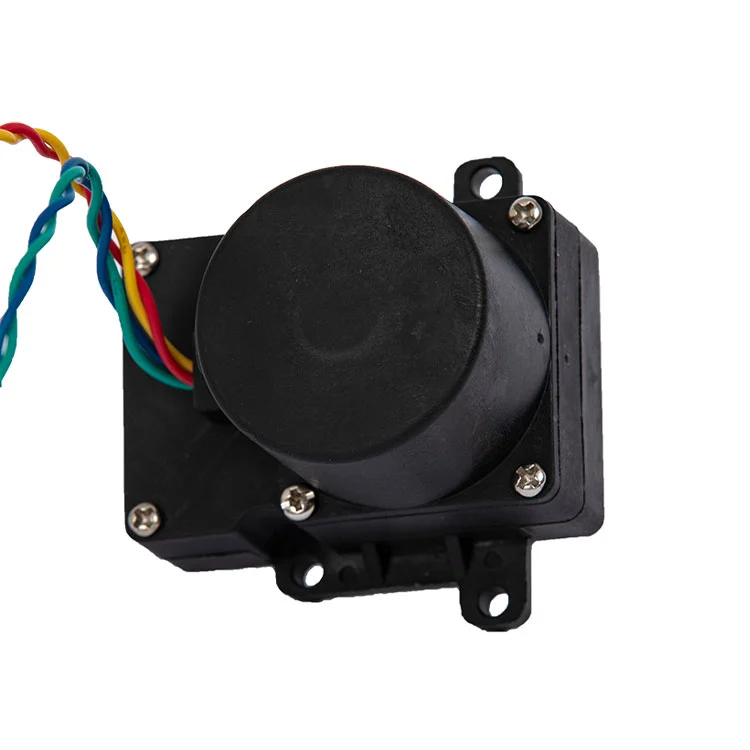

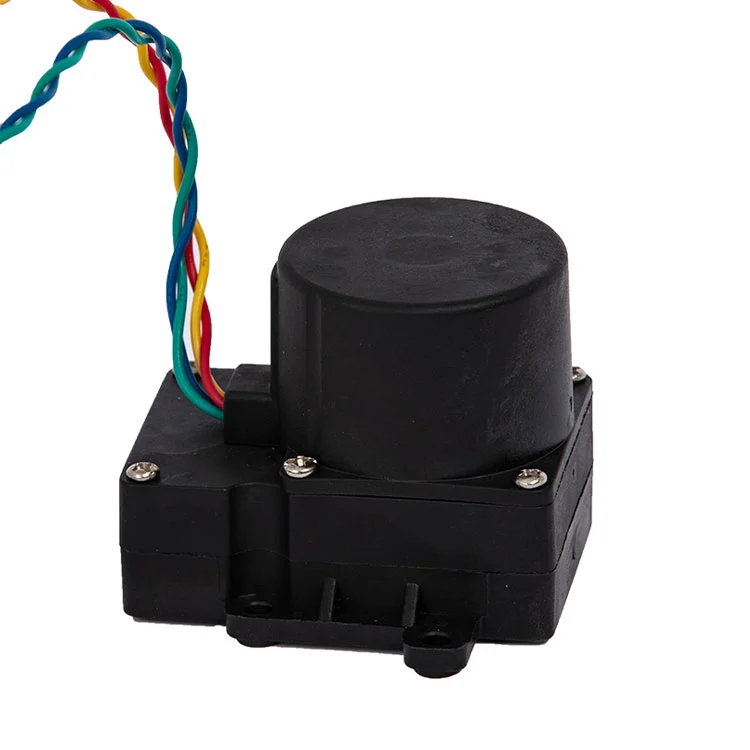

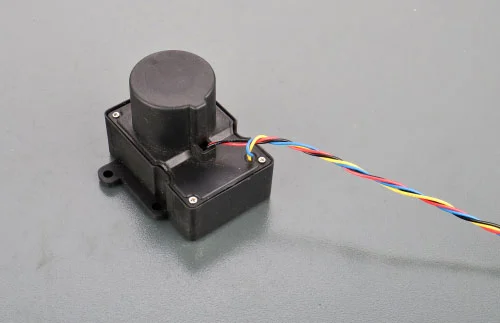

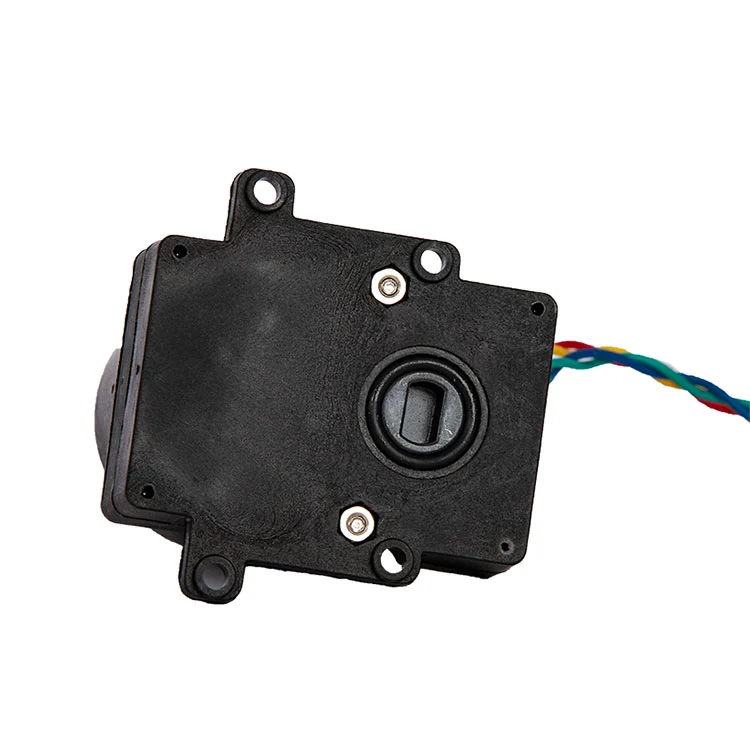

The structure of a Limited switch Gear Motor is engineered for functionality and ease of use, with four key integrated parts: 1.Drive Motor 2. Gear Reducer 3. Integrated Limit Switch Module 4. Mechanical Housing & Output Shaft
1. Simplified System Integration
2. High Precision Positioning
3. Enhanced Operational Safety
4. Customizability for Diverse Needs
5. Durability & Low Maintenance
The Limited switch Gear Motor is widely used in scenarios requiring precise motion control and automatic stop functions.
| Nominal operating voltage | 3.6V |
| Operating voltage range | 2.5-5V |
| Working current under nominal operating voltage with no load | ≤80mA |
| Blocking current under nominal operating voltage | ≤1.4mA |
| Output torque at rated operating voltage | ≥3.5NM |
| On/off time at rated operating voltage | ≤9s |
| Gear reduction ratio | 2258:1 |
| Water resistance rating | IP67 |
| Wire sequence definition |
Blue and Green: switch line Red :positive Black :negative |
What is the core difference between a Limited switch Gear Motor and a standard gear motor?
Unlike standard gear motors that require external limit sensing accessories to achieve in-position stop, the Limited switch Gear Motor is an all-in-one solution with a built-in limit switch module. It can automatically stop the motor when reaching preset positions, delivering higher positioning accuracy and simpler system integration without additional external components.
What are the core integrated components of the Limited switch Gear Motor?
The product is composed of four key integrated parts, which are fully optimized for functionality and ease of use: Drive Motor, Gear Reducer, Integrated Limit Switch Module, and Mechanical Housing & Output Shaft.
What are the main advantages of the Limited switch Gear Motor?
It has 5 core advantages: Simplified System Integration, High Precision Positioning, Enhanced Operational Safety, Customizability for Diverse Needs, and Durability & Low Maintenance.
