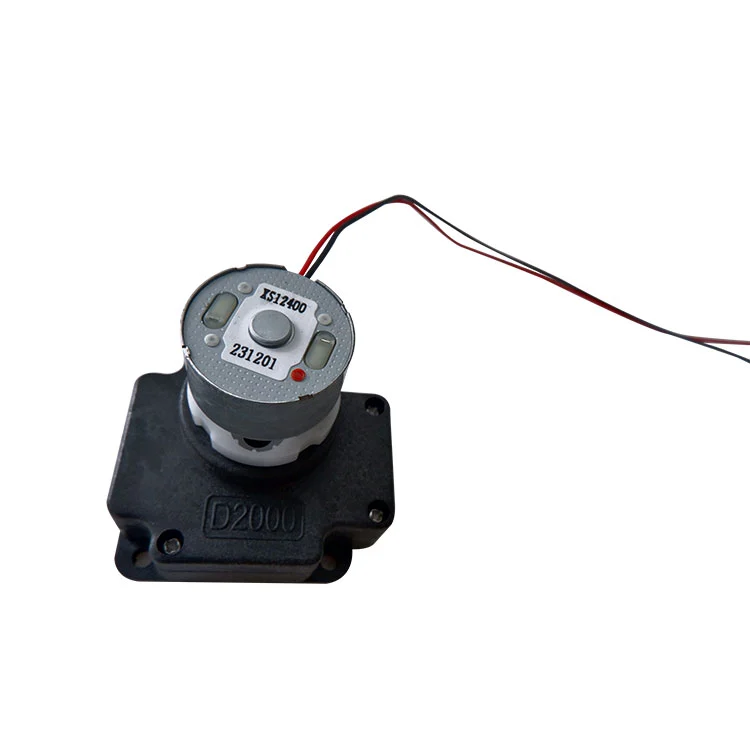

Magnetic water meter gear motor is a device that transmits power using magnetic force. It is used in water meters to perform specific functions, such as remotely controlling the opening and closing of valves or transmitting metering data. The adoption of magnetic drive can enhance sealing performance, prevent the motor from getting damp and rusting, and extend its service life. Meanwhile, it can reduce mechanical contact, lower friction and energy consumption. For example, an actuator with magnetic steels arranged in inner and outer rings can reduce the friction between the magnetic steel bracket and the sealing sleeve, thereby increasing battery life
| Product Parameter (Specification) | |||
| Model | KY-11 | ||
| Voltage | 3.6V | Operable voltage | 2.5-5V |
| Locked-rotor current | 550mA | Operating Current | ≤40mA |
| On (Off) Time | ≤10s | Output Torque | ≥1.8N.m |
| Reduction ratio | 2000:1 | Waterproof rating | IP65 (with shell) |
| Definition of line sequence: | |||
| Red | (positive) | ||
| Black | (negative) | ||
| The fully open and fully closed positions can be customized according to customer requirements. | |||
Q: What are the core advantages of magnetic drive design for this gear motor?
A: The magnetic drive design mainly has three core advantages: first, it greatly improves sealing performance, effectively preventing the motor from damp and rust, thus extending service life; second, it reduces mechanical contact, lowers friction and energy consumption; third, it cuts down friction between related components, helping to increase battery life, and also realizes stable power transmission for valve control and data transmission.
Q: Can the fully open and fully closed positions of the gear motor be adjusted according to actual needs?
A: Yes. The product clearly states that the fully open and fully closed positions can be customized according to customer requirements, which can adapt to different water meter installation specifications and actual usage scenarios.
Q: What are the key performance advantages of this magnetic water meter gear motor?
A: With more than 30 years of professional R&D and production experience in water meter actuators, this product has the advantages of small current, low noise, long service life and large torque, with stable performance and has covered overseas markets.
Q: What functions can this magnetic water meter gear motor realize in water meters?
A: It is mainly used to complete two core functions in water meters: one is to remotely control the opening and closing of water meter valves, and the other is to transmit water metering data, relying on magnetic force transmission to achieve stable and efficient operation.
