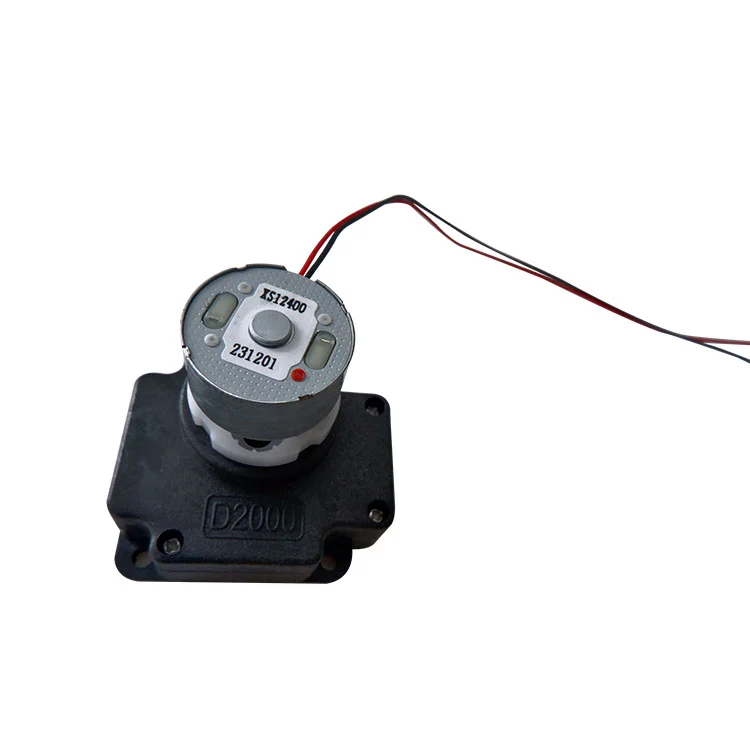

The core advantages of the Split Type Water Meter gear motor stem from its split structural design—this is also the most fundamental difference between it and the integrated water meter gear motor.
Its split design breaks the installation space limitations of integrated motors, allowing flexible arrangement of module positions according to the internal structure of the water meter. This is particularly critical for adapting to the complex internal space of large-caliber water meters, and it is precisely this feature that constitutes its core advantage over integrated water meter gear motors.
| Rated operating voltage | 3.6V |
| Under rated operating voltage |
1.Operating Current: ≤ 40mA (at Normal Temperature of 23℃） 2.Locked-rotor current: about 550mA(320motor) 3.Output Torque: ≥1.8NM 4. On (Off) Time: ≤ 10s |
| Waterproof rating | IP65 |
Q: How does the split design of the KY-11 simplify installation compared to integrated gear motors?
A: Unlike integrated motors that require fixed overall installation space, the Split Type Water Meter gear motor’s motor body, gear reducer, and limit switch module can be installed separately. This allows flexible layout according to the water meter’s internal structure, especially useful for large-caliber meters with irregular internal spaces.
Q: Can the KY-11’s actuation time (≤10s) be adjusted?
A: The standard on/off time is ≤10s, but it can be modified by adjusting the gear reduction ratio (with corresponding torque changes). For example, a higher reduction ratio may extend actuation time but increase torque—please consult our team for customized parameter adjustments.
