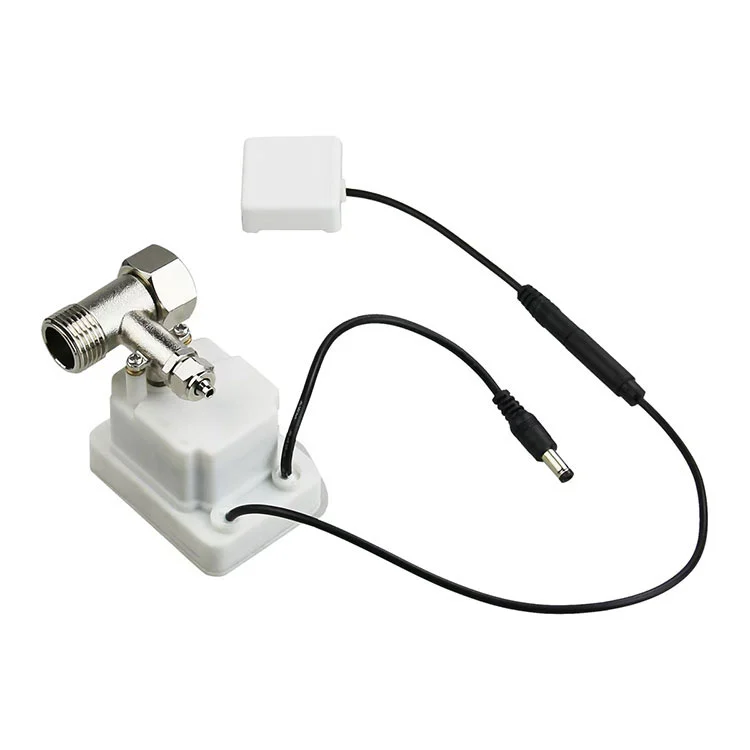

Water meter purifier valve actuator features basic control for automatic and remote switching, intelligent linkage enabling automatic RO membrane flushing, automatic water shut-off upon leakage and water shortage protection, as well as water-saving optimization through on-demand water supply to cut down waste. Water meter purifier valve actuator also supports remote management including APP control, real-time status monitoring and abnormal alarms, and is equipped with comprehensive safety protection against overcurrent, overvoltage and overheating.
Water meter purifier valve actuator boasts precise and controllable performance with stable flow and an adjustable wastewater ratio, an extended long service life, and intelligent and convenient operation featuring automatic flushing, water shut-off protection and remote management; it also offers high integration by integrating multiple functions (inflow, wastewater discharge and flushing) into a single valve, as well as low power consumption that ensures compatibility with low-voltage power supply.
| Voltage | 24V |
| Operable voltage | 23-25V |
| Locked-rotor current | 450mA |
| Operating Current | ≤80mA |
| On (Off) Time | ≤10s(2400:1)，≤16s(3700:1) |
| Output Torque | ≥1.8N.m(2400:1)，≥2.7N.m(3700:1) |
| Reduction ratio | 2400:1,3700:1 |
| Waterproof rating | IP66 |
|
2.0mm Pin Definition: The fully open and fully closed positions can be customized according to customer requirements. |
|
|

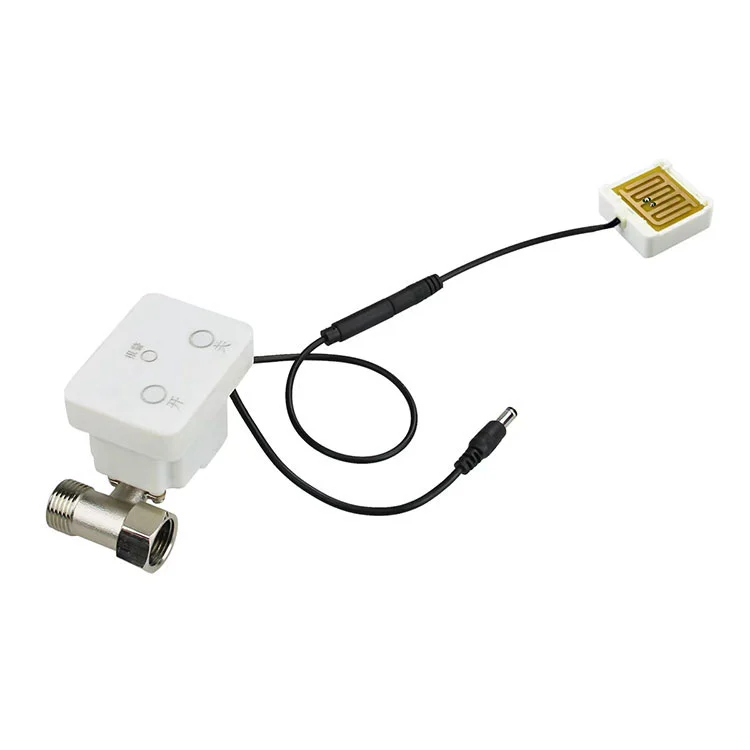

Function Definition: 1. Touch the upper circular area (marked "ON") to open the valve. 2. Touch the upper circular area (marked "OFF") to close the valve. 3. When water comes into contact with the water leak alarm, the valve will close and the alarm light will turn red. |
|
