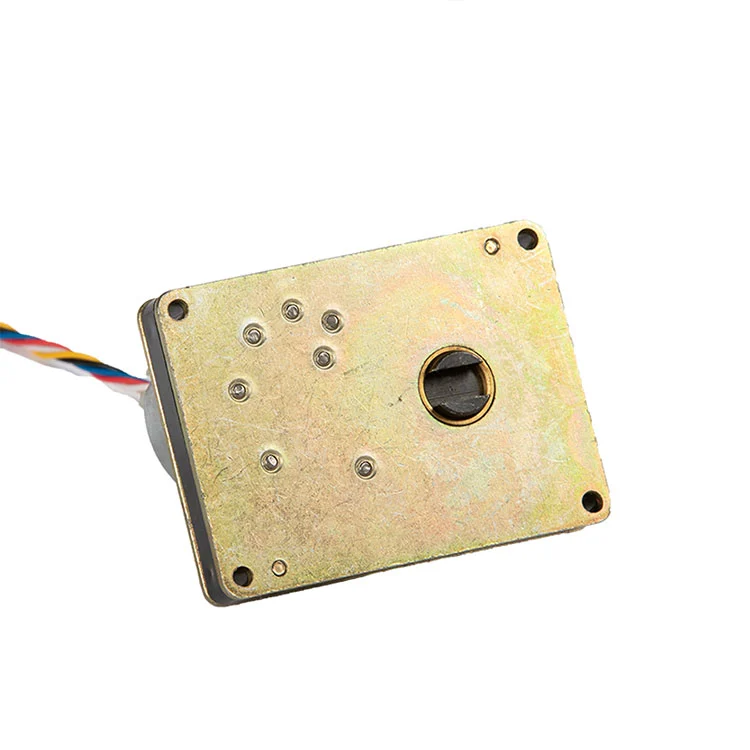

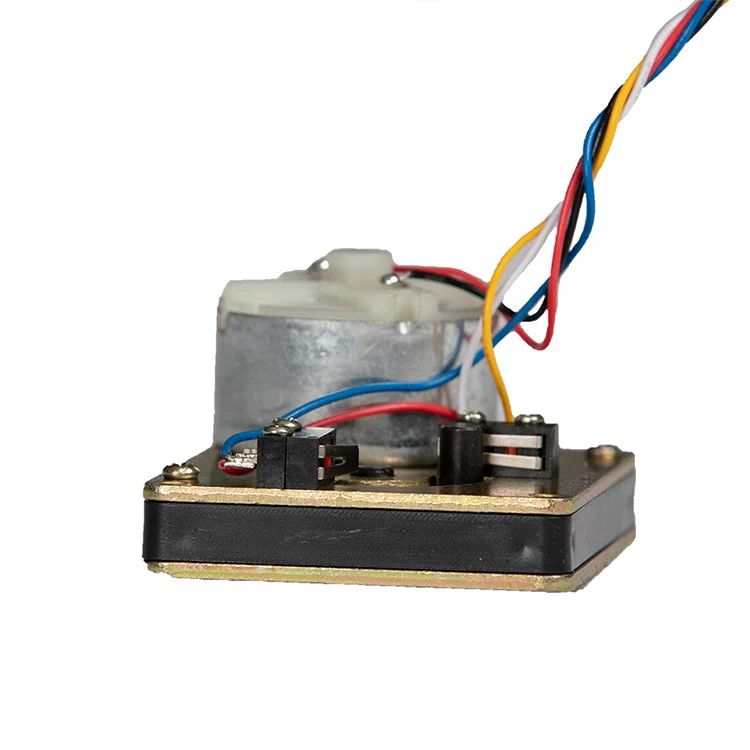

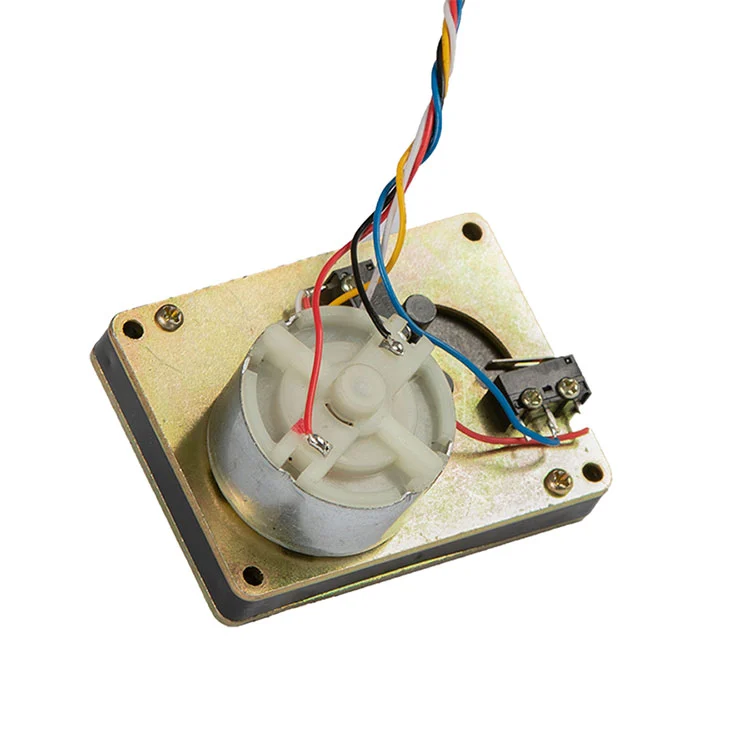

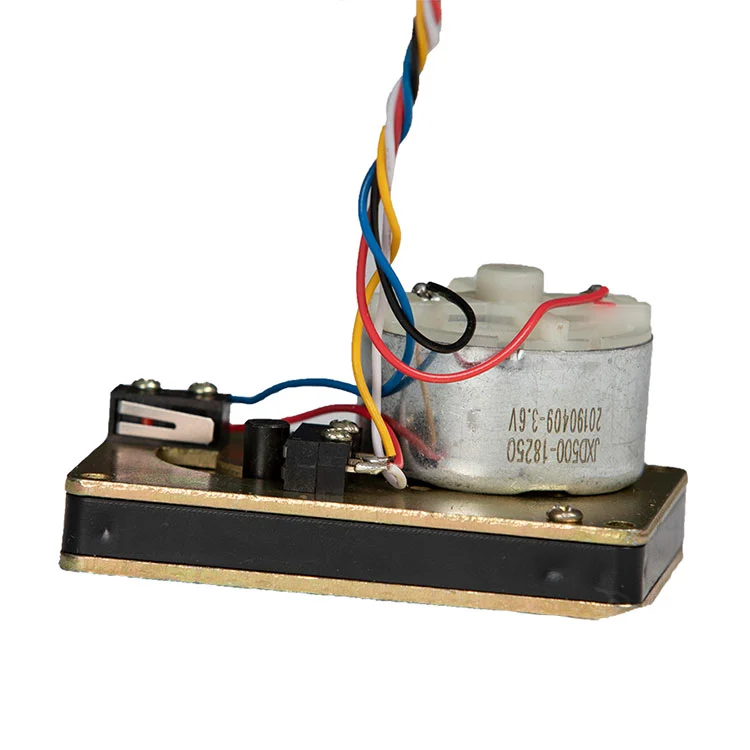

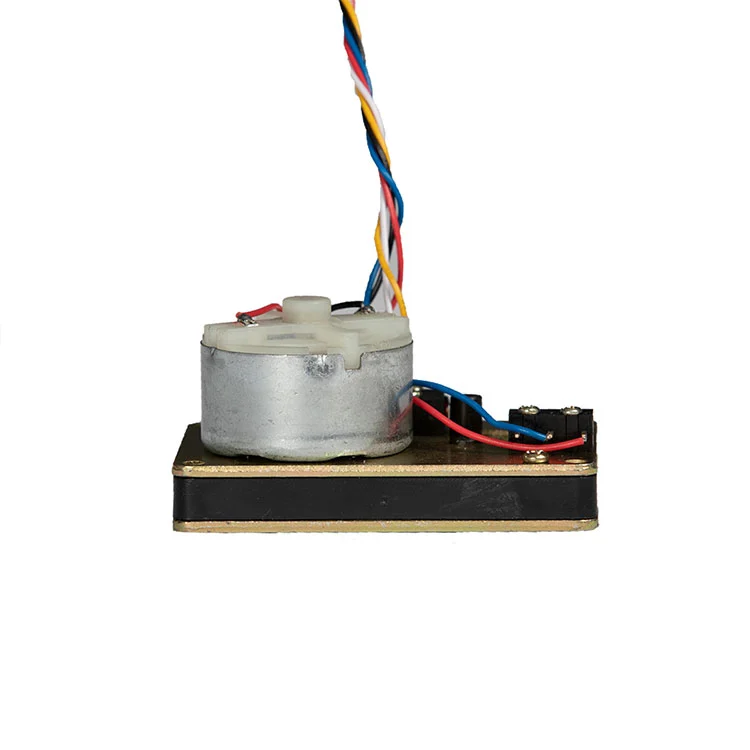

The Water Meter Speed Reducer is a core precision transmission component for fluid control systems, widely used in smart water meters, flow measurement and control systems, water purification equipment, drinking fountains, water treatment devices, intelligent plumbing systems, and small valve control systems. It enables stable speed regulation, precise angle control, and accurate flow adjustment for these systems, laying a foundation for reliable fluid management.
Specifically optimized for medium-to-large caliber valve scenarios, this Water Meter Speed Reducer is mainly applied to DN40 and DN50 valves. It stands out with high torque output and long service life, effectively solving the transmission challenges of large-caliber valves that require strong driving force and long-term stable operation. As a key support for large-flow fluid control, the Water Meter Speed Reducer ensures that the entire system achieves accurate and efficient control of water flow and valve status.
All parameters are tested under standard ambient temperature (23 °C) and rated voltage, ensuring consistency with actual application scenarios.
| Parameter Item | Standard Value & Supplementary Notes |
| Rated voltage | 3.6 V DC |
| Operating voltage range | 2.5 V – 5 V DCNote: Higher input voltage within this range may increase torque but shorten service life. |
| No-load current (at rated voltage) | ≤ 50 mA (at 23 °C room temperature) |
| Locked-rotor current (at rated voltage) | 1100 mADefined as the maximum current when the reducer output shaft is locked, avoiding motor burnout due to overload. |
| Output torque | ≥ 9 N·m (matched with 2400:1 gear ratio) |
| Valve on/off actuation time | ≤ 60 s |
| Gear reduction ratio | 7200:1Suitable for DN32–DN50 valve calibers, balancing torque and actuation efficiency. |
| Wiring Sequence Definition | 1. Blue: Valve open activation switch signal 2. White: Common terminal for position signals 3. Yellow: Valve close activation switch signal 4. Black: DC power positive pole 5. Red: DC power negative poleNote: Confirm wiring logic with our technical team before installation to avoid reverse control. |
| Ingress Protection (IP) Rating | IPX0 (Unprotected)Standard version for dry indoor environments; customized IP65/IP67 waterproof versions are available for humid or water-exposed scenarios. |
