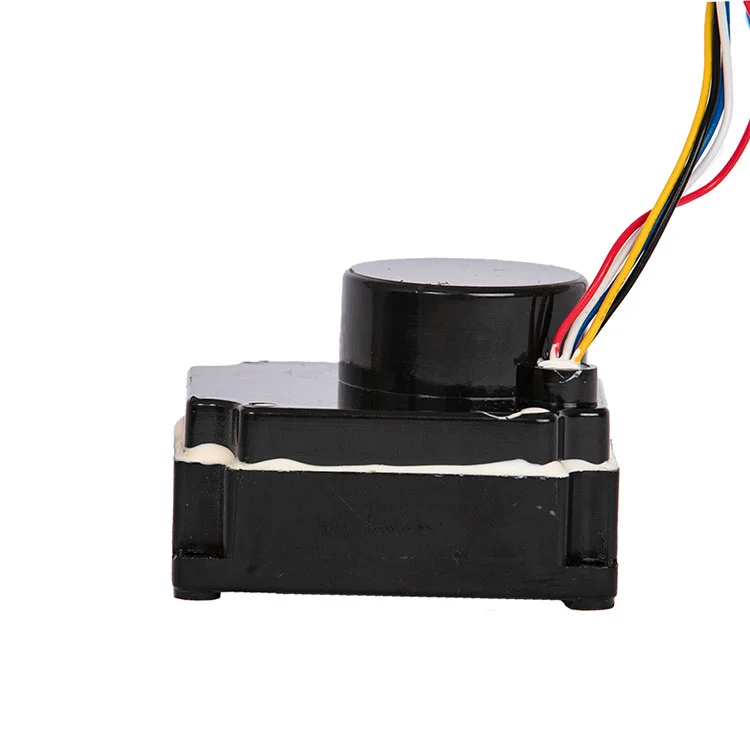

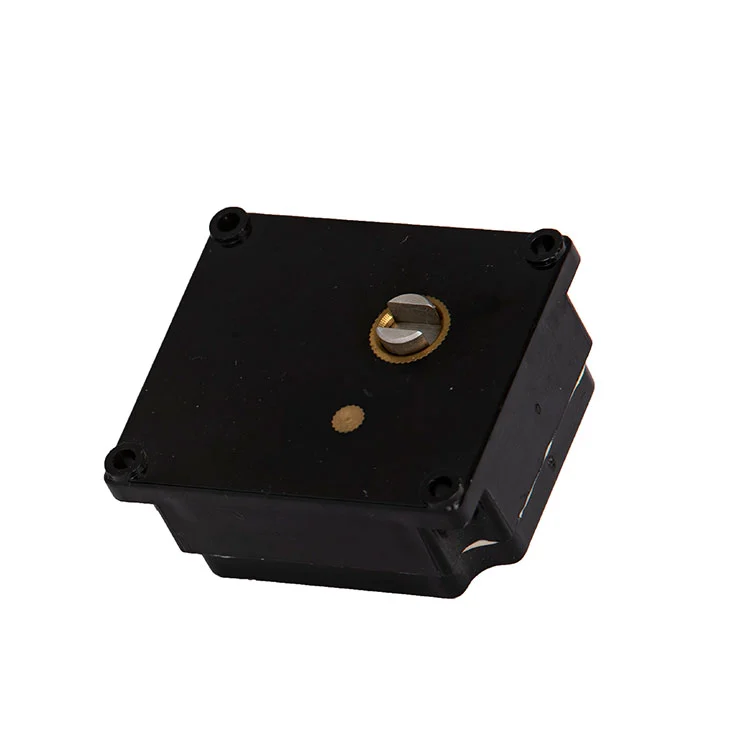

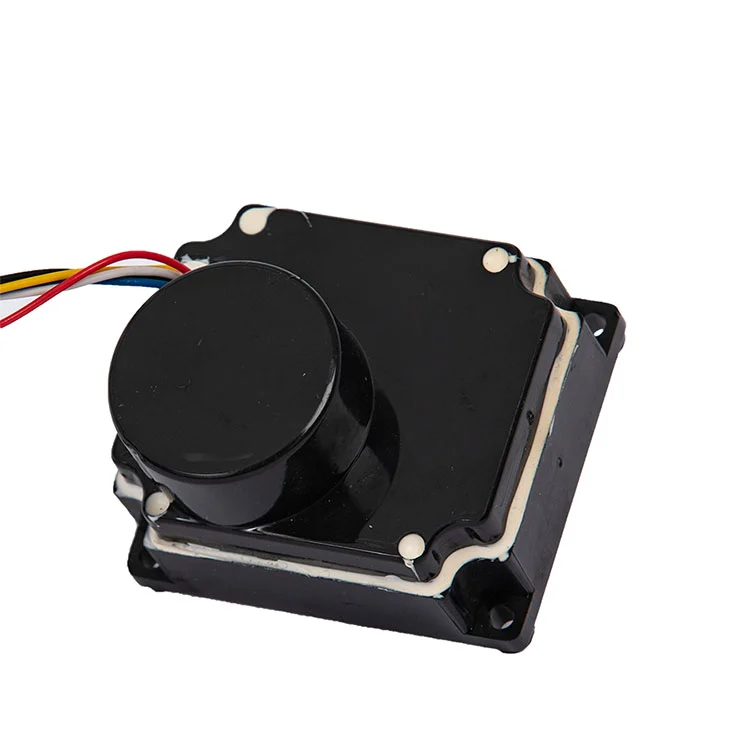

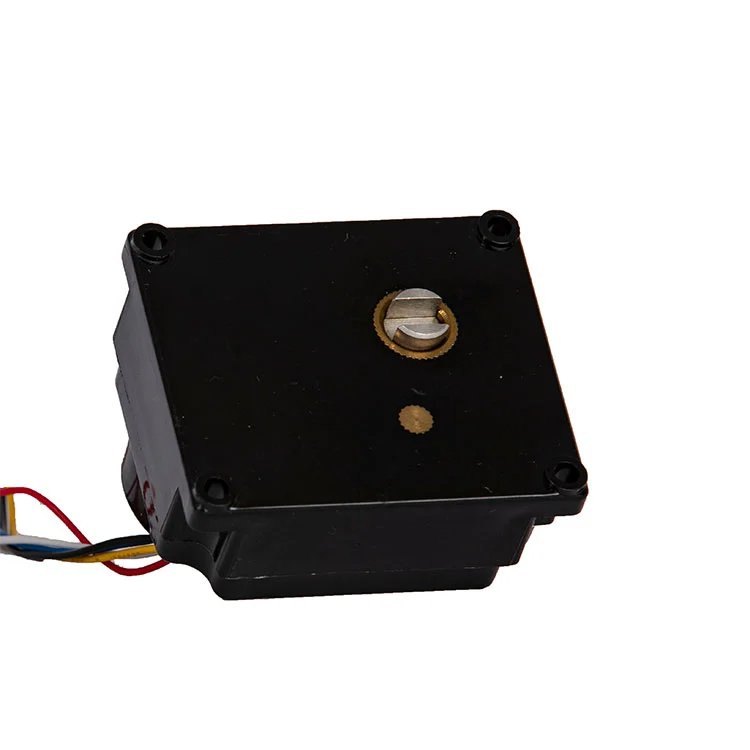

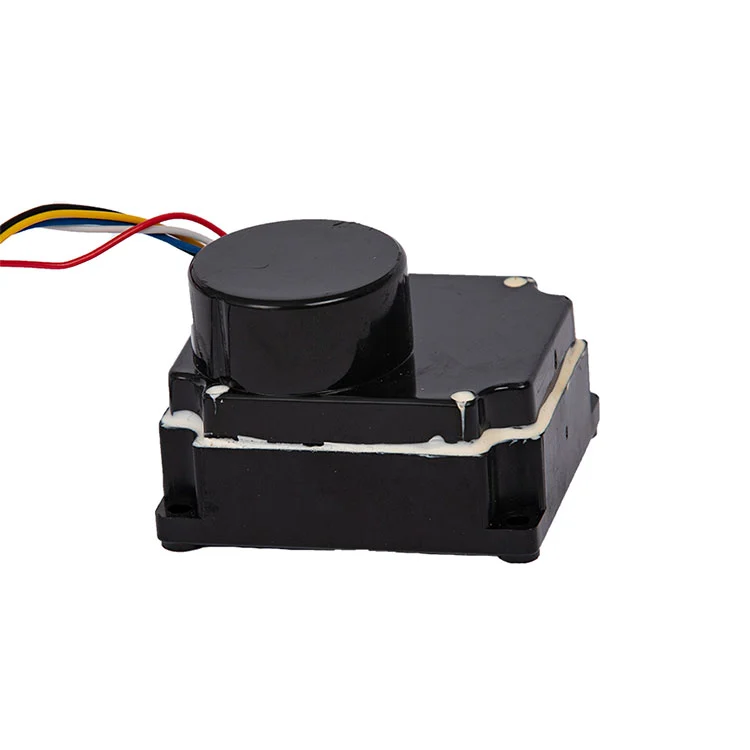

This Water Meter Valve Gear Motor delivers stable driving performance for water meter valve control, with standardized electrical and mechanical parameters designed for long-term operation in water supply systems. Core specifications are listed below for engineering reference and procurement verification.
| 1. Rated Voltage | 3.6 V |
| 2. Operating Voltage Range | 2.5–5 V(Note Increased input voltage raises output torque but shortens product service life; operate within rated voltage for optimal durability) |
| 3. No-Load Current (Rated voltage, 23℃ ambient temperature) | ≤ 25 mA |
| 4. Locked-Rotor Current (320 motor standard) | Approx. 550 mA |
| 5. Output Torque (Rated voltage, 2400 | 1 reduction ratio) ≥ 1.8 N·m |
| 6. Valve Opening/Closing Time (Rated voltage, 2400 | 1 reduction ratio) ≤ 10 s |
| 7. Reduction Ratio | 24001 (Suitable for DN15–DN20 water meter valves) |
| 8. Waterproof Rating | IP67 (Protects against dust ingress and temporary water immersion) |
• White: Valve open in-position feedback signal
• Blue: Common terminal for in-position feedback signals
• Yellow: Valve close in-position feedback signal
• Red: Power positive (+)
• Black: Power negative (–)
• Important: Valve open/close direction may be reversed due to on-site installation; please verify and adjust before formal operation.
The Water Meter Valve Gear Motor is engineered for precise valve actuation in smart water metering systems, with IP67 protection adapting to humid water supply environments. All parameters are tested under standard laboratory conditions to ensure consistent performance and compatibility with DN15–DN20 valve assemblies.
