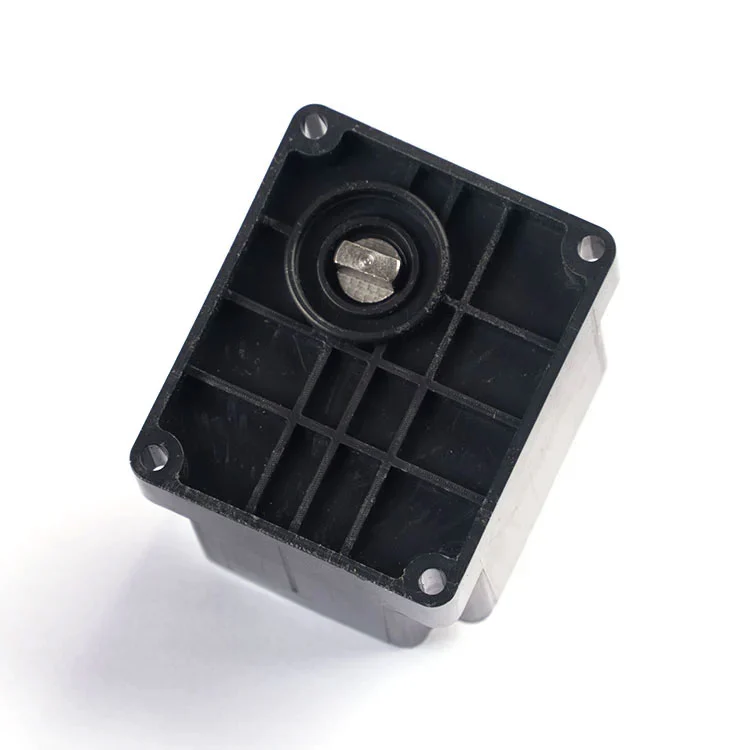

Water meter nowire actuator achieves circuit connection by replacing traditional wires with pins. Water meter nowire actuator's core advantages lie in "space optimization + safety enhancement + waterproofing reinforcement", which accurately addresses the pain points of traditional wired actuators, such as cumbersome assembly and large space occupation.
The fully open and fully closed positions can be customized according to customer requirements.
I: open valve
II. COM
III: close valve
IV: positive
V: negative
| Voltage | 3.6V | Operable voltage | 2.5-5V |
| Locked-rotor current | 450mA | Operating Current | ≤25mA |
| On (Off) Time | ≤10s(2400:1) | Output Torque | ≥1.8N.m(2400:1) |
| On (Off) Time | ≤16s(3700:1) | Output Torque | ≥2.7N.m(3700:1) |
| Reduction ratio | 2400:1(DN15-20) | Waterproof rating | IP67 |
| Reduction ratio | 3700:1(DN25) |
Scientific and technological innovation,
social services
Energy saving and environmental protection,
quality assurance
What does "wireless pin connector" mean for this actuator? Is it completely different from traditional wired actuators?

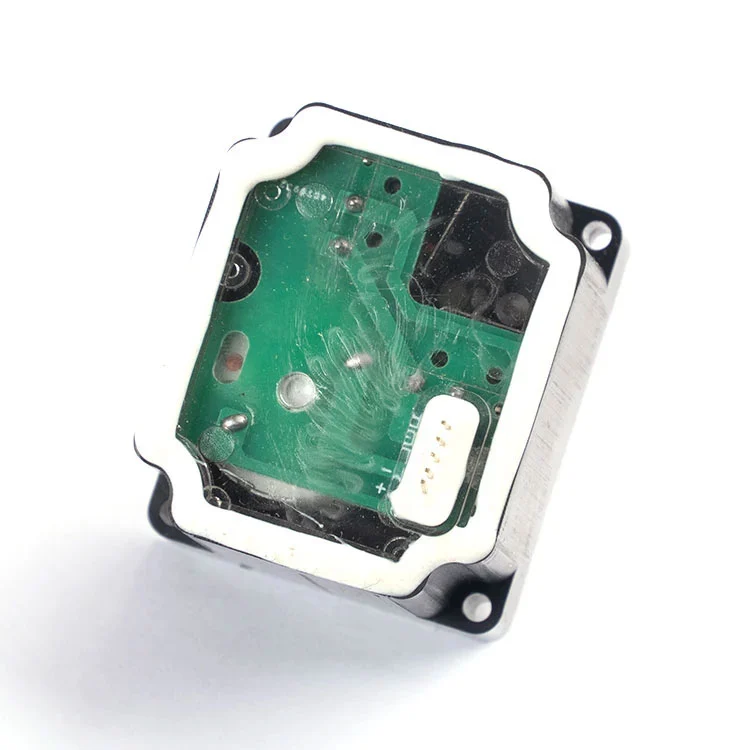

This Water meter nowire actuator abandons traditional cable soldering connection, and adopts 2mm standard pin contact to realize circuit connection. It is a wire-free design, which is completely different from traditional wired actuators that need welding and wiring, truly realizing plug-and-play quick connection, and eliminating all troubles caused by wires.
What are the core advantages of this pin-type wireless actuator compared with traditional wired actuators?
The core advantages are very prominent: firstly, faster installation, no cable soldering required, greatly shortening assembly and on-site installation time; secondly, higher safety and reliability, avoiding welding quality risks such as cold solder joints, virtual welding and oxidation, improving product consistency and stability; thirdly, space optimization, no messy wires, reducing overall space occupation, suitable for compact water meter structure; fourthly, enhanced waterproof performance, with IP67 splash-proof sealing design, better adapting to humid water meter working environment.
