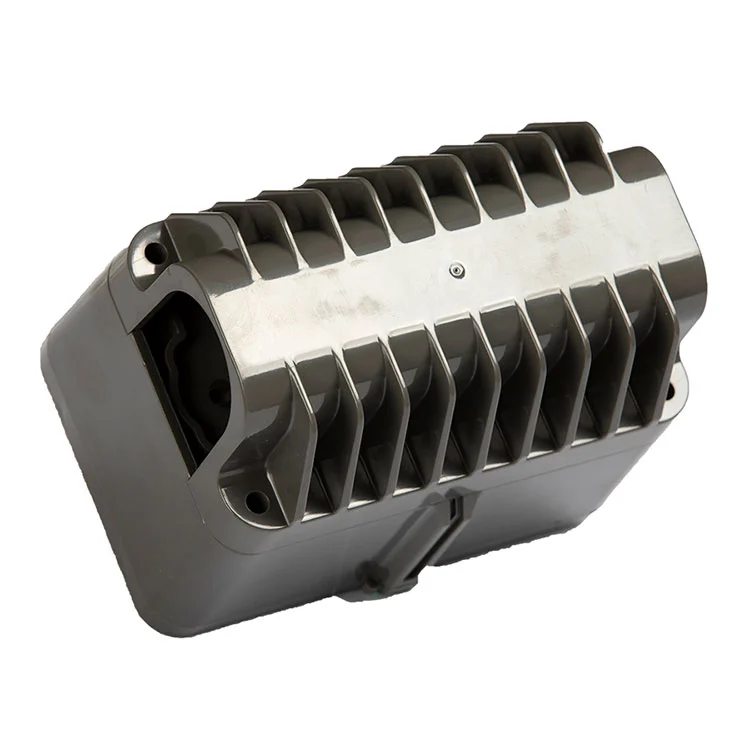

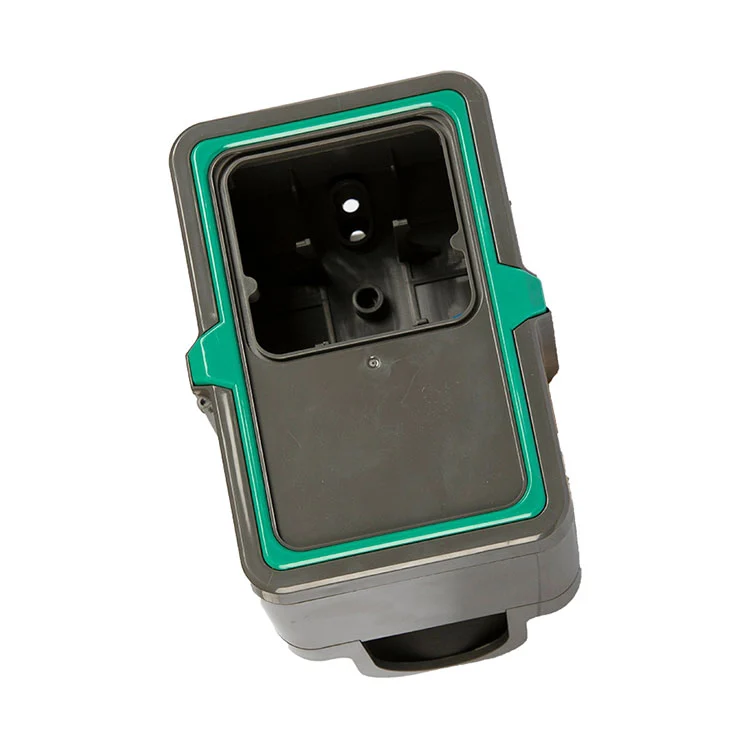

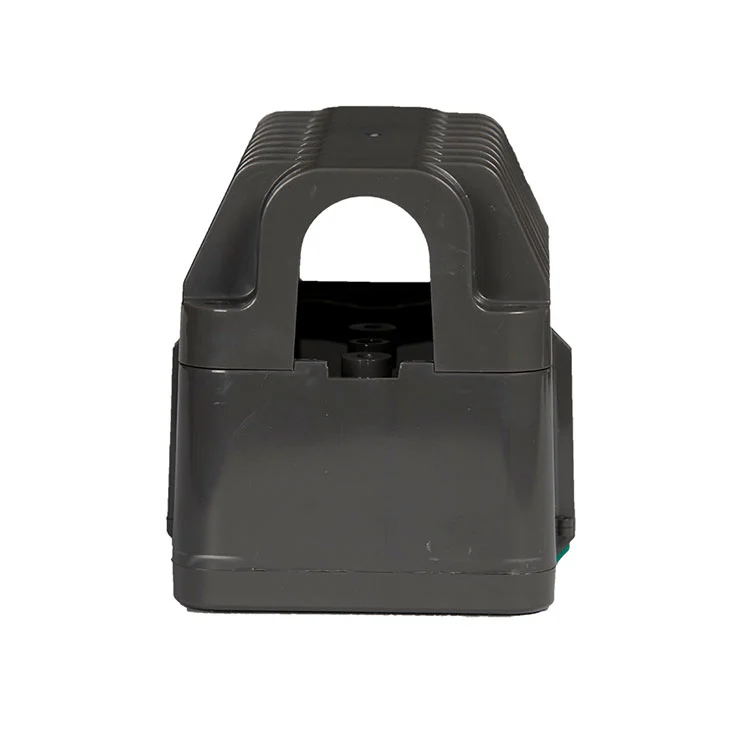

Water Meter Valve Gear Motor Shell encloses all internal components of the water meter, featuring excellent sealing performance and integrity. Water Meter Valve Gear Motor Shell effectively protects internal elements from external environmental influences.
The water meter is equipped with a well-designed sealing structure, achieving a high protection rating such as IP67, which allows Water Meter Valve Gear Motor Shell to operate continuously in water and prevents water and dust from entering the interior, ensuring the water meter functions normally.
| Voltage | 3.6V | Operable voltage | 2.5-5V |
| Locked-rotor current | 550mA | Operating Current | ≤30mA |
| On (Off) Time | ≤16s(3500:1) | Output Torque | ≥2.5N.m(3500:1) |
| On (Off) Time | ≤30s(6200:1) | Output Torque | ≥4N.m(6200:1) |
| Reduction ratio | 3500:1,6200:1 | Waterproof rating | IP67 |
The fully open and fully closed positions can be customized according to customer requirements.
I: Blue (open valve)
II. White (COM)
III: Yellow (close valve)
IV: Red (positive)
V: Black (negative)
What is the role of this gear motor shell for the smart water meter?
This Water Meter Valve Gear Motor Shell is used to house the smart water meter with a built-in automatic control valve, which can completely wrap all internal components of the water meter, with excellent sealing performance and structural integrity. It can isolate the internal components from the external harsh environment, avoid damage to internal parts caused by moisture, dust and other factors, and extend the overall service life of the water meter.
What are the current parameters of this product, including locked-rotor current and operating current?
The locked-rotor current of this product is 550mA, and the normal operating current is ≤30mA, with low power consumption during daily operation, which is in line with the energy-saving use requirements of smart water meters.
