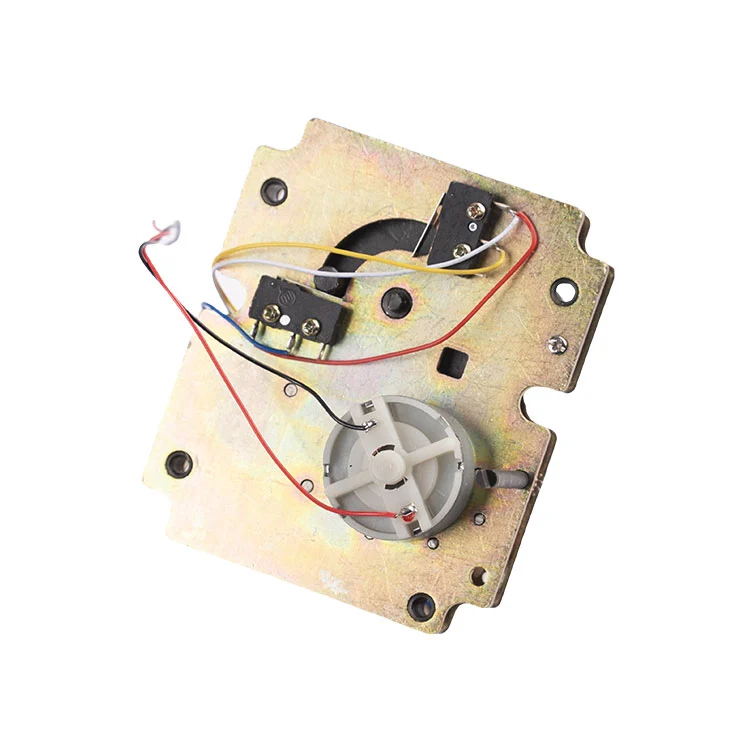

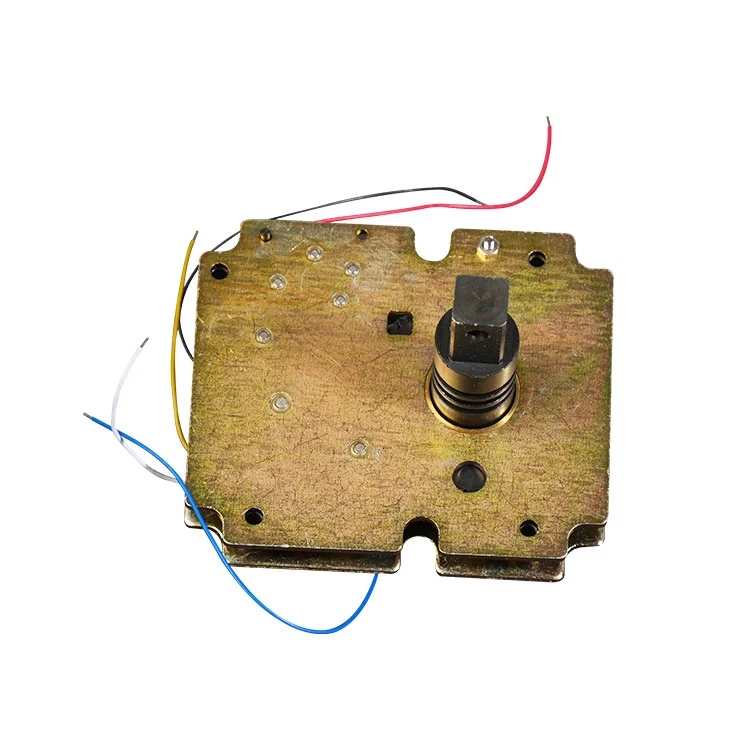

The Water meter water distribution actuator is a dedicated drive control component for multi-user water metering scenarios, including multi-user water sub-meters, one-household-one-meter renovation projects, centralized water supply systems, and household metering systems.
It realizes on-off control of branch water circuits, flow distribution, and household-specific water management through a high-torque motor and precision mechanical structure. When combined with smart water meters and centralized management platforms, this actuator enables functions such as household-level billing, arrears-based valve shut-off, remote control, and timed water supply—ultimately achieving unified management of multi-channel water usage and precise distribution of water resources.
Notably, the Water meter water distribution actuator is equipped with a manual operation function, which allows for emergency valve opening/closing via manual adjustment when power is cut off or the system malfunctions, ensuring uninterrupted basic water supply for users.
All parameters are tested under standard ambient temperature (23 °C) and rated operating voltage (3.6 V DC), ensuring consistency with actual multi-user water supply application scenarios.
| Parameter Item | Standard Value & Supplementary Notes |
| Rated operating voltage | 3.6 V DC |
| Operating current (at rated voltage) | ≤ 120 mA (tested at 23 °C normal temperature) |
| Locked-rotor current | Approximately 2500 mA (for 528-series motor)Note: Built-in overcurrent protection to prevent motor burnout; the high current is designed to drive large-caliber valves. |
| Output torque | ≥ 45 N·mHigh torque output, suitable for driving large-diameter branch water valves in multi-user systems. |
| Valve on/off actuation time | ≤ 55 s |
| Waterproof (Ingress Protection) rating | IPX0 (Unprotected)Standard version for dry indoor installation (e.g., centralized meter cabinets); customized IP65/IP67 waterproof versions are available for humid or semi-outdoor scenarios. |
| Special function | Equipped with manual operation functionSupports emergency manual valve adjustment when power is off or sy |
